Data List SM0603GC Drawing

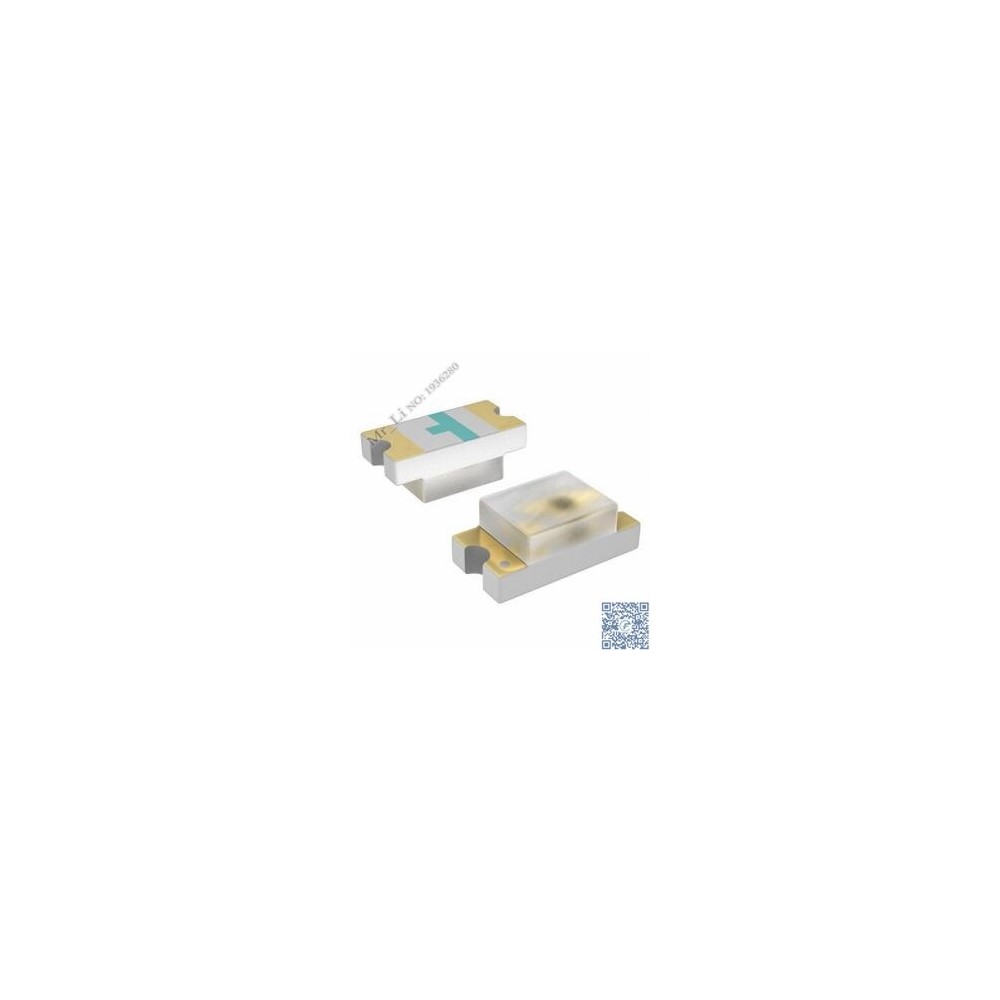

Product Photos 492-132x-2-ND
Standard Package 1
Category Optoelectronics
Family LED indication - Discrete
series -
package Cut Tape (CT)
Colour green
Wavelength - Dominant 565nm
Wavelength - 568nm
Cents candlelight rating 15mcd
Voltage - Forward (Vf) ( typical) 2.1V
Current - Test 20mA
Perspective 130 °
Lens Type Transparent
Lens Style / Size Rectangle with Flat Top , 1.2mm x 0.8mm
Package / Case 0603 ( 1608 metric)
Size / Dimensions 1.60mm x 0.80mm width length
height 0.60mm
Mounting Type Surface Mount
Luminous Flux Test Current -
Other Names 492-1324-1
