12CH Wireless Transceiver Codec RF Remote Control Module 3-5V Delay Receiver for Arduino UNO MEGA2560 DUE ZERO
​Note: Adjustable resistors (potentiometers) are components that are easily damaged. Use a suitable screwdriver to slowly rotate. Click here to buy a screwdriver.

User guide :
This receiver is 4 channels , Keyfob is 12 Buttons  , 1 Button control 1 channel . each channel work independently .



Product Name :   12CH Wireless Transceiver Codec RF Remote Control Module 3-5V Delay Receiver for Arduiuo UNO MEGA2560 DUE ZERO



Packing list :

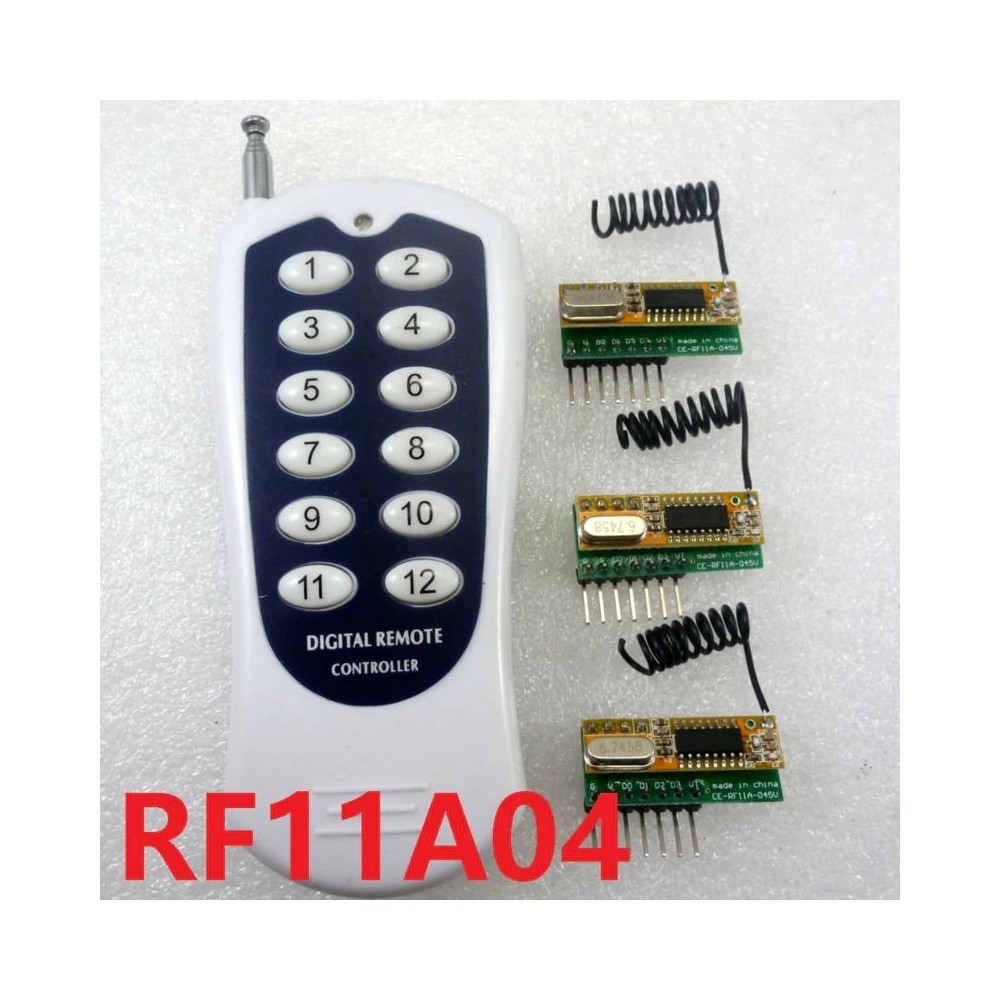

3 pcs RF11A04 433M 1527/2262 Superheterodyne  Receiver decoder delay module;
1 PCS  433M 12 Channel PT2264 ASK OOK RF Wireless Transmitter KeyFob(USE 12V 23A battery,Batteries not included)
Receiver parameters:

Model No.: RF11A04 OR CE-RF11A-045V
Operating voltage: DC 3V/3.3V/5V
Operating current: less 11mA (DC 5V)
Working priceple: super heterodyne
modulation Mode: OOK / ASK
Operating Frequency : 433.92MHZ
Receiving sensitivity: -108dBm
Output level: 3-5V TTL level, low standby, the maximum current 20MA (to add a current-limiting resistor)
Decode: learning code, adapted EV1527 / PT2262 and a compatible remote control, you can store up to eight remote control
Working modes: Non-locking (Momentary ), self-locking (Toggle), Inter-locking; 0.1-500000 seconds adjustable delay time
Size: 30x12.1x12.5mm
Weight: 4 grams or less

 As this product(click here), you can directly insert  Arduiuo UNO MEGA2560 DUE

Normally, we would adapter remote control and receiver.
If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below

Learning method and steps:
In normal operation mode, LED (D1) will be lit, when receiving a valid remote control (EV1527 / PT2262) key value, LED will flash.

Clean code: hold the button to press.LED offs, keep pressing about 8 seconds until LED lights. At that time, clean code completion (Note: After the implementation of clean code, previous remote controls do not exist.

Adaptation (learning):
Step 1 (into the learning mode):trigger the key button, LED offs;

Step 2 (adapter channel 1): press the first button of remote control and then, LED offs after flashes for four times. This time means that it had learned the value of the first button

Step 3 (Adaptation Channel 2): Press the second remote control, LED offs after flashes 4 times, This time means that it had learned the value of the second button

Step 4 (adapter Channel 3): Then press the remote's third button, LED offs after flashes 4 times, This time means that it had learned the value of the third button

Step 5 (Adaptation Channel 4): Then press the remote control's fourth button, LED lights after flashes 4 times, This time means that it had learned the value of the fourth button.

NOTE: The process must be completed within 15 seconds

Use more details, please click here!




433M 12 Channel PT2264 ASK OOK RF Wireless Transmitter KeyFob:

Technical Data :
Power supply : DC 12V 23A battery   . (This remote doesnot have a battery , Please buy in your local market );
Operating current: <=20 mA;
Oscillation mode:  SAW resonator;
Modulation mode: ASK/OOK;
Operating frequency :  433.92MHZ  ;
Encoding IC : PT2264 OR compatiable IC;
Output power :   120MW;
RC Resistance :  4.7M ;
