7W 3,3-11V - -12V Pozitív és negatív Kettős tápegység DC/DC Step up Converter modul teljesítményerősítéshez

Below item is powered by eletechsup Ltd.

Product Name:  7W 3.3-11V to -12V Positive and negative Dual power supply DC/DC Step up Converter module for Power amplifie

Packing list:

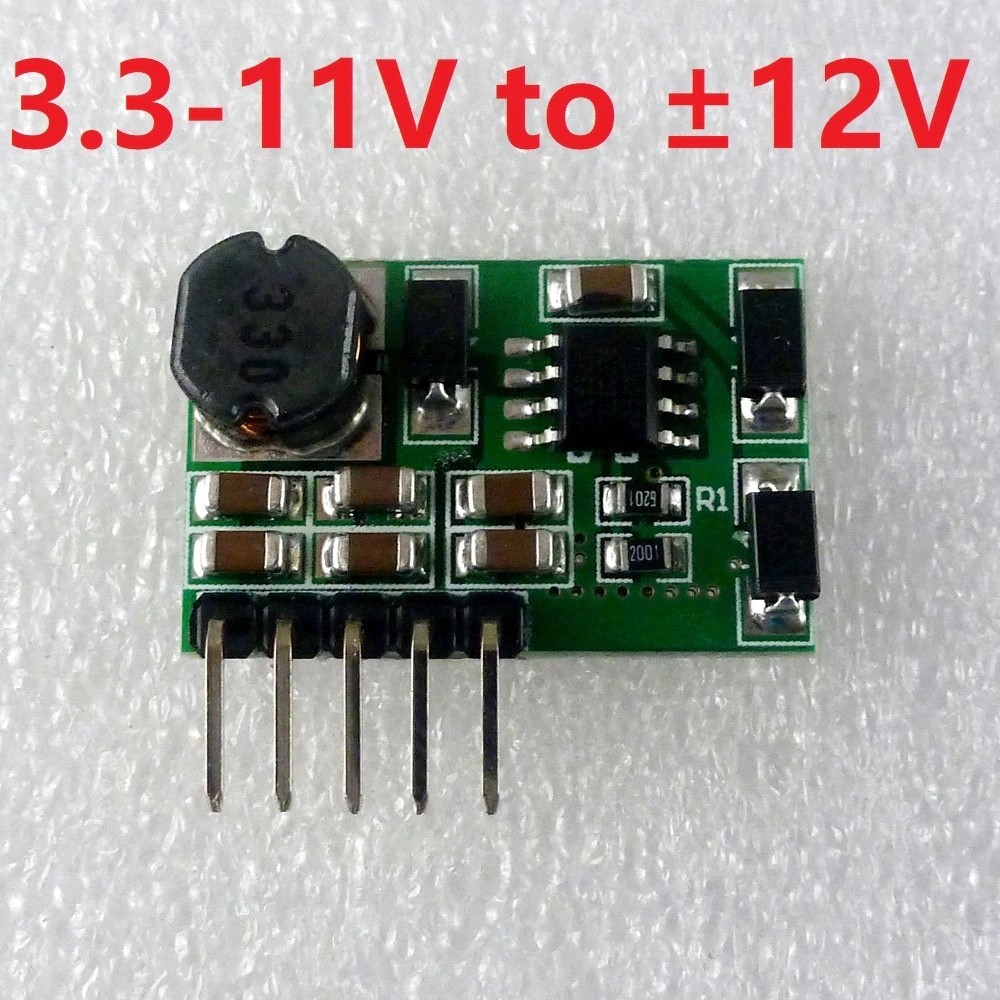

1 PCS 3.3V-11V TO ±12V Step-up Boost Dual voltage Module


Description:

Input voltage DC 3.3~ 11V,output DC ±12(Deviation is ±4% )
Maximum input current 1.8A
Maximum output current : Vo is 700mA,-Vo is 150mA
Quiescent current: 3-4mA
DC DC Boost Converter Module working frequency 400kHz.
Operating temperature range : -40~ 125 Degrees Celsius
Storage temperature range : -65~ 150 Degrees Celsius
2.54mm pin pitch,for MCU Development Board Breadboard friendly.
Size(Does not include pin) : 25 x 16.3 x 6.6mm
Weight :3.4g

Internal Optimize Power MOSFET
High efficiency up to 90%
Built in Frequency Compensation
Built in Soft-Start Function
Built in Thermal Shutdown Function
Built in Current Limit Function

Note:
1 Due to the diode partial pressure, the voltage of -Vo is lower than Vo
2 In order to obtain a more stable voltage, it is recommended that the output is greater than 1MA
3 -Vo cannot be used alone, or no voltage output.But you can just use Vo


Applications

ADC/DAC/Operational Amplifier
RS232 RS485 RS422 Bus
Audio equipment
LCD power supply
Instrumentation equipment
MCU Board
Motor Power
Instrumentation multimeter
Wifi/Router/Ethernet devices

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:

Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
