PT2262 Transmitter Control Delay Relay Receiver Kits RF Wireless Lamp LED Motor












Kit No. : RT396

This remote switch allows you to remotely control any 12 Volt DC device. Perfect for controlling any 12V devices such as Lights, Fans, Landscaping Lighting and more. This easy-to-wire kit is perfect for anybody with a basic knowledge of electrical wiring, and can easily be wired to many 12V applications. For PC Modders, the end of result of the Remote Control 12VDC kit is truly impressive and is sure to impress the crowds. For DIYers, the kit will give some magical effect to your projects.

Encoding and Decoding
The popular link is like this: MCU -> Encoder -> Transmitter ------ Receiver -> Decoder -> MCU,
PT2262(Encoder) are optional, their existence is to 1)avoid confusing when multiple RF links in range 2) isolate disturbance.
You can integrate the encoding and decoding work to the MCUs on both side. Whenever there is no 433.92MHz devices around, you may use it as direct cable connection.

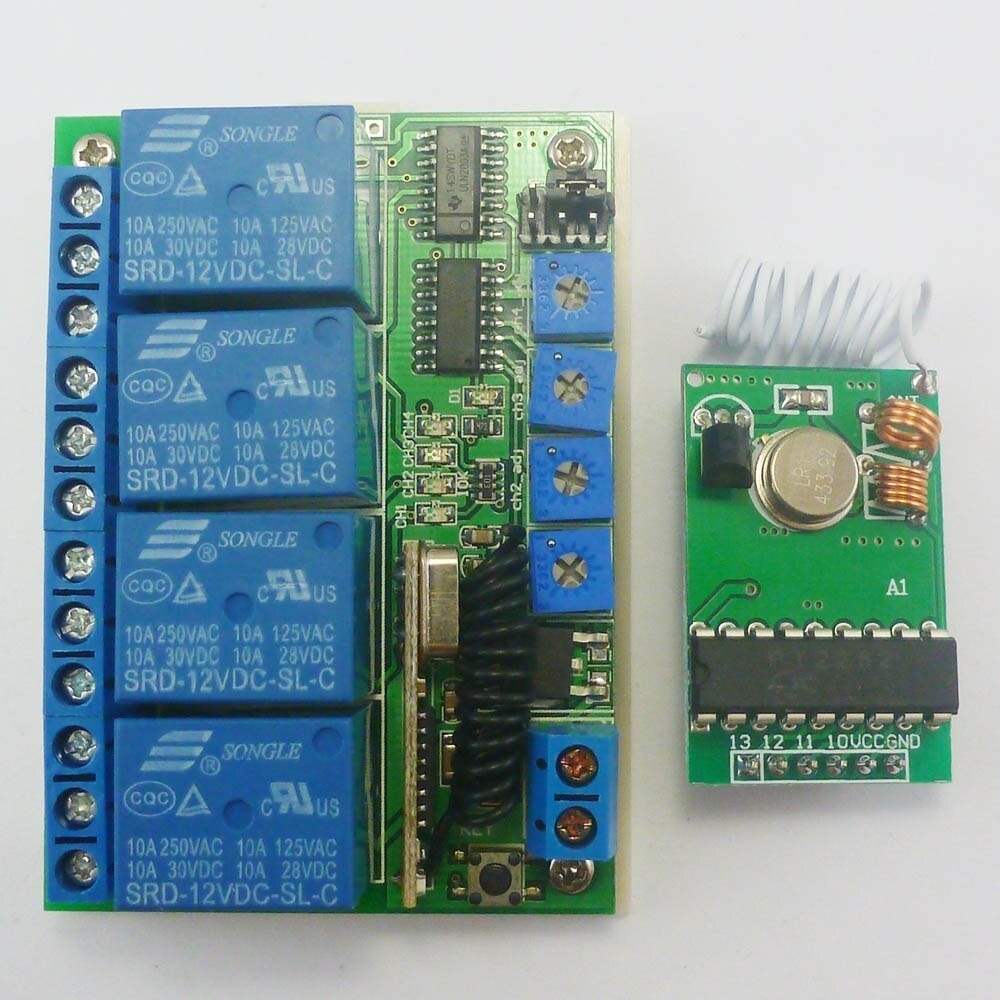

Qty : 1 pcs PT2262 transmitter module and 1 pcs 4 channels relay switch ;


Transmitter :

Model No.
TB195 Encoder Transmitter
Function discription
Encoder Transmitter modules
Operating voltage
3V ~ 12V DC
Static current
max≤8mA(12V) min≤2mA(3V)
Operating frequency
433MHz
modulation Mode
ASK/OOK
SAW Frequency stability
±150kHz(max)
Transmitter Power
50mW (315MHz, 12V)
Data rate
≤10Kbps
Antenns length

24 cm (315 MHz), 18 cm (433.92 MHz)
Dimension
36 * 27mm
Encodeing format PT2264 fixing code (same as PT2262 SC2262 ) Work with PT2272 decoder IC
Transmitter distance 100M (open area)

Connect to MCU or Ardiuno :

Connect to Switch:
