8db fp6190 cserélje ki az AMS1117 Lm2596 DC DC átalakítót 5V-23V-ról 3,3V-ra Step Down Buck szabályozó tápmodul
8pcs fp6190 replace AMS1117 Lm2596 DC DC Converter 5V-23V to 3.3V Step Down Buck Regulator Power Module
Product Name :     8pcs fp6190 replace AMS1117 Lm2596 DC DC Converter  5V-23V to 3.3V Step Down Buck Regulator Power Module

  Packing list:

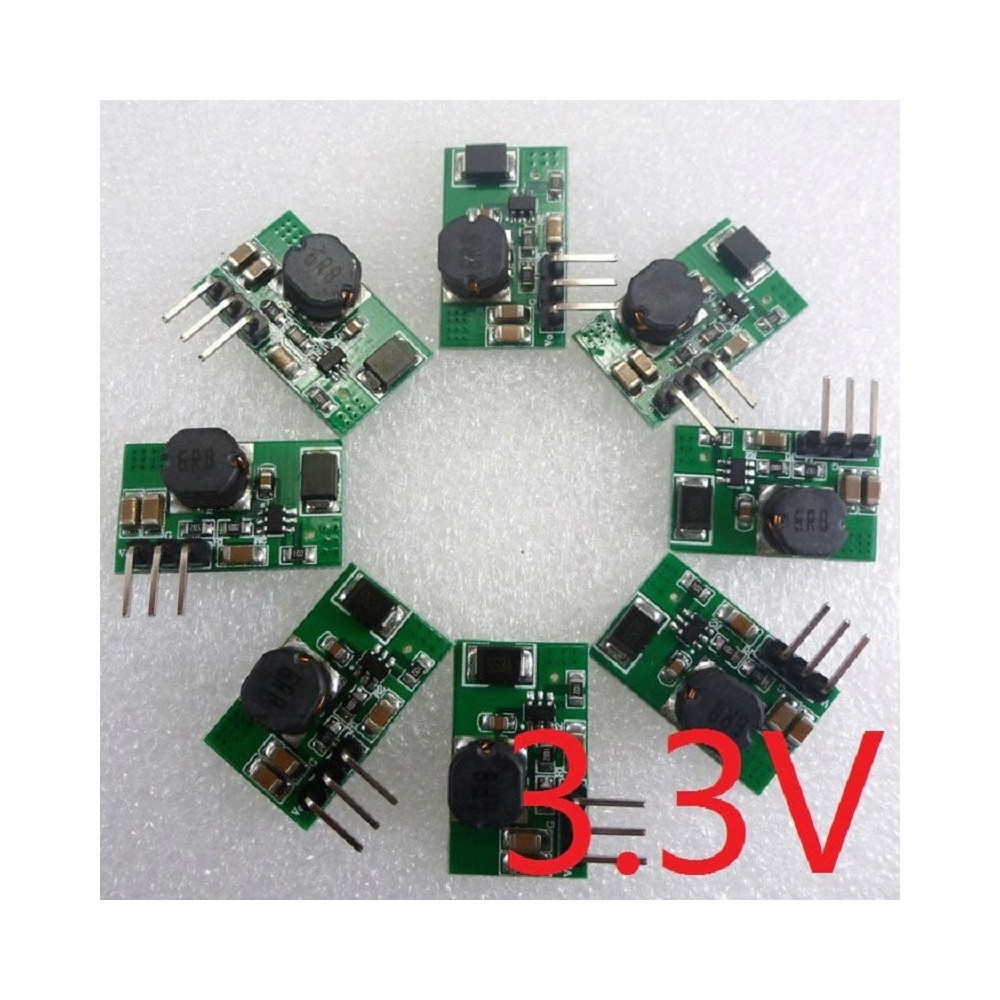

8 PCS 1.2A        fp6190          DC DC  Converter Step Down 5V -23V to 3.3V Board




Description:

fp6190 replace AMS1117 Lm2596 DC DC Converter

Input voltage 4.75~23V,output 3.3V

Maximum output current 1.2A,Short time maximum output current 2A

DC-DC Step-Down Converter module working frequency 1.4MHz. efficiency is 79-92% .

2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly

Excluding Pin Size 22.5mm x 13.5mm x 6.5mm( small)

Weight : about 2.2g( Very light)


Applications:

Breadboard /PCB /Universal board
3.3V Motor LED
esp8266 WIFI Module
Bluetooth Zigbee Module
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
DSL Modems

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
