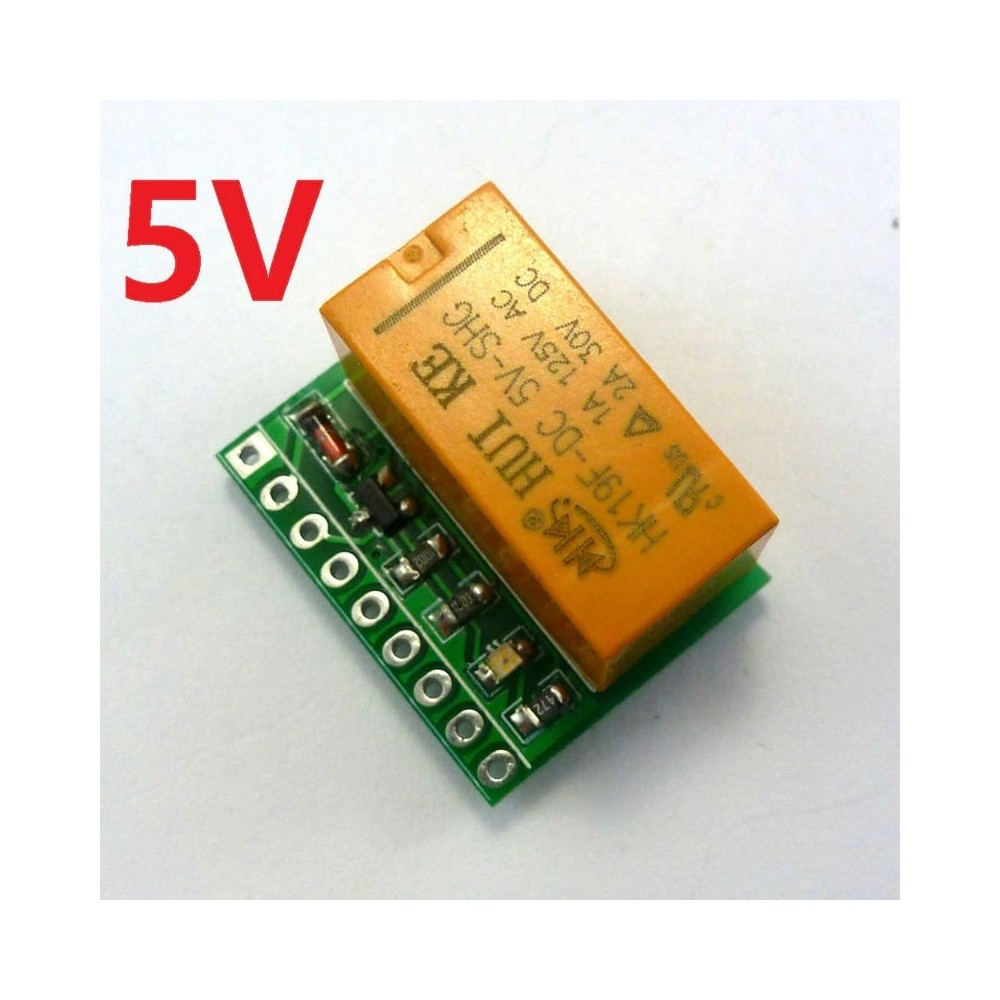

DR21B01 DC 5V DPDT jelrelé modul, kétcsatornás választókapcsoló panel LED MCU motorhoz Játék autós hajómodell repülőgépekhez
DR21B01 DC 5V DPDT Signal Relay Module Dual Channel selector switch Board for LED MCU Motor Toy car boat model aircraft
Typical applications:
Automotive electronics
Audio and video equipment
lithium battery 18650
Motor,Toy car, boat, model aircraft
Emergency lighting



Product Name : DR21B01 DC 5V DPDT Signal Relay Module Dual Channel selector switch Board for LED MCU Motor Stereo Audio Switch

Packing list:

1 PCS DR21B01 one Channel DC 5V DPDT Relay Module



Description:

DR21B01 5VDC one Channel DPDT Relay Board

Operating Voltage : DC 4.5-5.5V(5V)
Operating Current(Relay ON): 36MA
Standby Current(Relay OFF) : <1MA

Input control signal voltage:
                     0V - 0.6V Low stage (relay is OFF),
                     0.6V – 2.5V (unknown state).
                     2.5V - 24V High state (relay is ON).
Input control signal high state current:
                     2.5V: 0.15mA
                     5V: 0.4mA
                     12V: 1.2mA
                     20V: 2mA

Relay Load : 1A 125VAC;2A 30VDC


Size   : 22.86x18x14
Weight :6g



Schematic:
