OPEN-SMART MAX7219 8 bites 8 számjegyű kijelző LED-modul Arduino-hoz
OPEN-SMART MAX7219 8 Bit 8-Digit Display LED Module for Arduino
Description

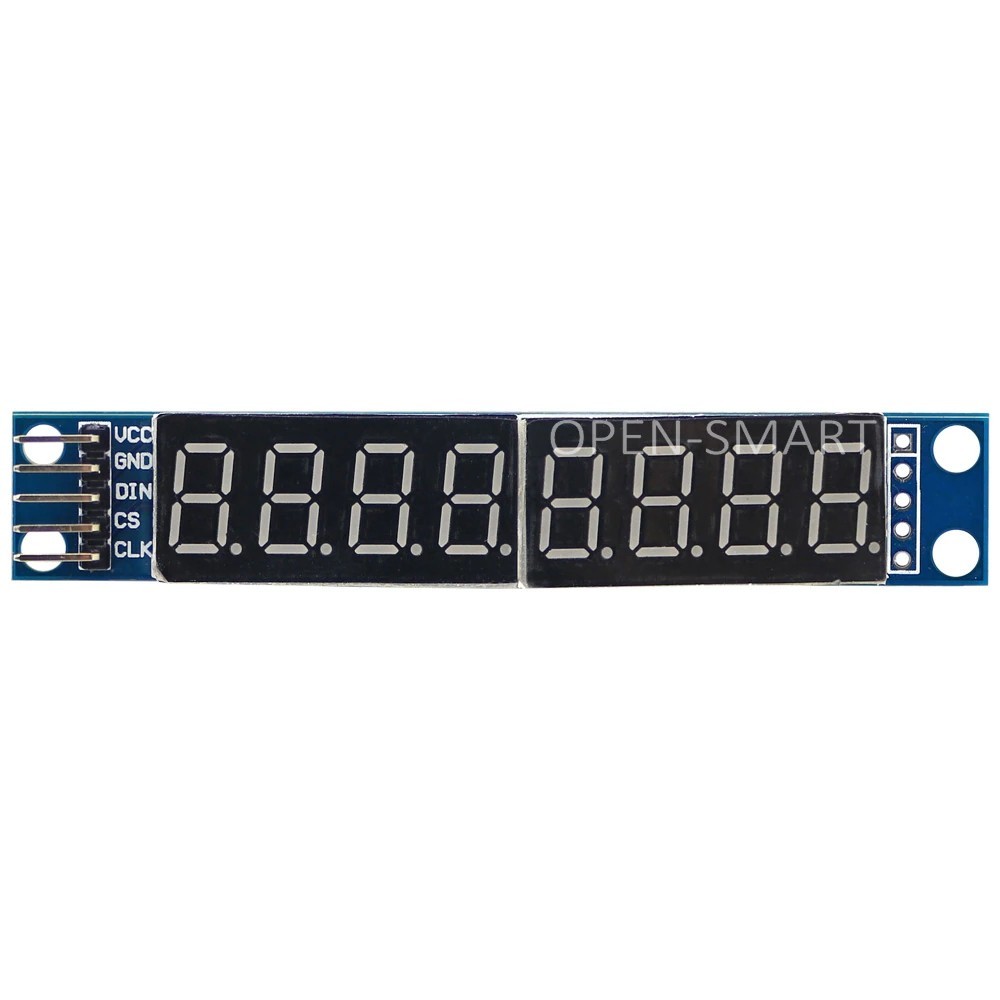

This is a 8-digit tube display module based on MAX7219 chip and it can display decimal point. It only needs 3 digital wire to control all of them.
More 8-bit digital tube modules can be cascaded together.
It can be used to display temperature / humidity and other values from the sensors.
 Features:
- Compatibility: can be directly connected to OPEN-SMART board, for 51, for AVR board.
- Driver IC: MAX7219
- Interface: 3-wire CLK / CS / DIN
- Working Voltage: 4.2-5.2VDC
- Working Current: 100mA(MAX).
Photos

Part List (Schematics and program can be sent, Please contact us)
1 x Module

Please Note That (Note: After you buy the product, the documents can be send, Please contact us)
