300 mA nagy hatékonyságú szinkron PFM DC-DC konverter 0,7-3V-3V AA AAA szárazelemes tápellátású LED-ekhez

Below item is powered by eletechsup Ltd .

Product Name:   300mA High Efficiency synchronous PFM step-up DC-DC converter 0.7-3V to 3V for AA AAA Dry cell powered equipment LED

Packing list:

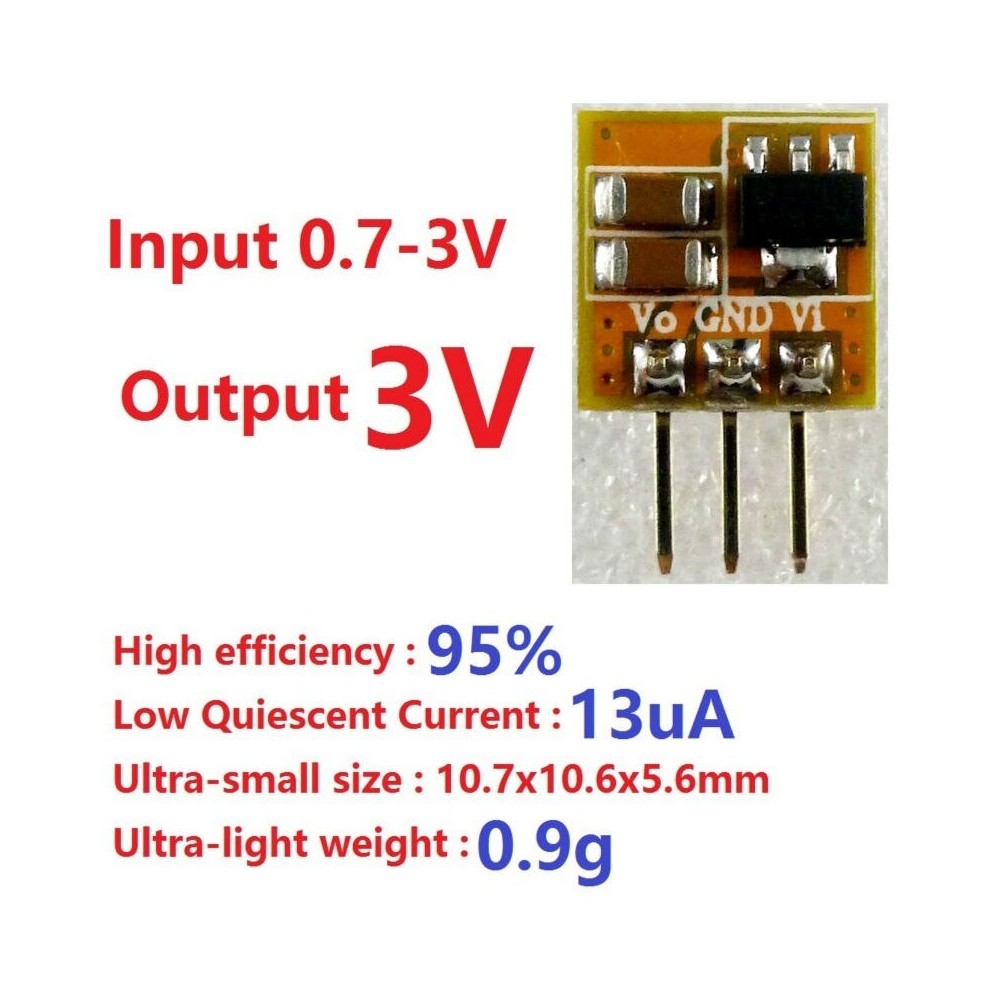

1 PCS 300mA High efficiency & Low Quiescent Current 0.7-3V to 3V Step-up  Converter Module

Description:
Input voltage DC 0.7 ~ 3V,output DC 3V±2%

DC DC Boost Converter Module working frequency 350KHZ.

High efficiency : 95% (usually is 76% -93% )

Low Quiescent Current : 13uA

Low ripple and Low noise

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

Ultra-small size(Not including pin) : 10.7x10.6x5.6mm

Ultra-light weight : 0.9g



Applications
AA AAA Dry cell powered equipment
Breadboard Power Supply
Small power motors
Camera, Video camera
Electric toys
Model aircraft
LED Lighting
CC1101 CC2500 ESP8266
Audio equipment


Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:

Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
