500 mA nagy hatékonyságú 0,8-3,3 V-3,3 V PFM DC-DC átalakító ds18b20 dht22 STM32 FPGA CPLD tápegységhez

Below item is powered by eletechsup Ltd .

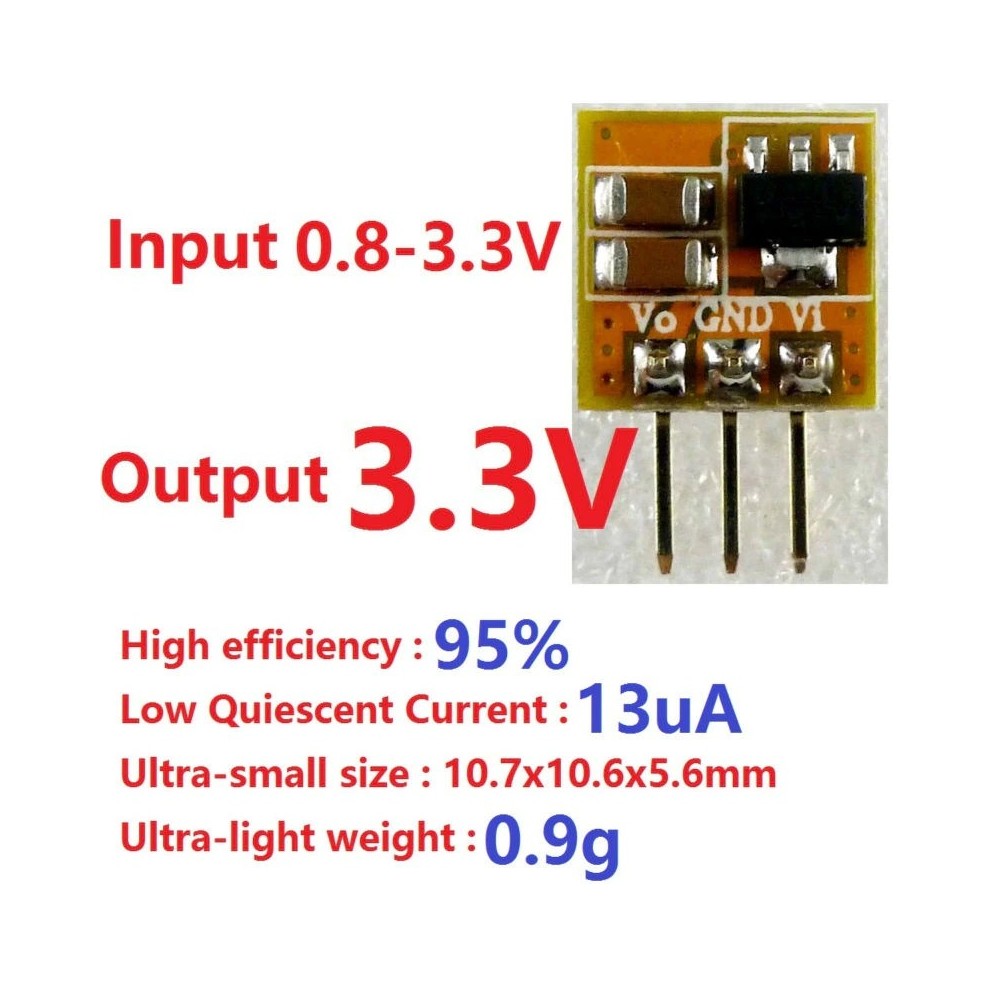

Product Name:   500mA High Efficiency 0.8-3.3V to 3.3V PFM Step-up DC-DC Converter for ds18b20 dht22 STM32 FPGA CPLD Power Supply

Packing list:

1 PCS 500mA High efficiency & Low Quiescent Current 0.8-3.3V to 3.3V Step-up  Converter Module


Description:
​
Input voltage DC 0.8 ~ 3.3V,output DC 3.3V±2%

DC DC Boost Converter Module working frequency 350KHZ.

High efficiency : 95% (usually is 76% -93% )

Low Quiescent Current : 13uA

Low ripple and Low noise

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

Ultra-small size(Not including pin) : 10.7x10.6x5.6mm

Ultra-light weight : 0.9g



Applications
Battery powered equipment
Breadboard Power Supply
Small power motors
Camera, Video camera
Electric toys
Model aircraft
LED Lighting
STM32 FPGA/CPLD PIC AVR Board
raspberry pi
electronic diy kit
Temperature and humidity sensor : ds18b20 dht22

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:

Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
