USB-ESP-12E modul Beépített antenna 2,4 GHz-es soros adó-vevő Wi-Fi-kompatibilis hibakereső firmware programozáshoz ESP8266-hoz
USB to ESP-12E Module Built-in Antenna 2.4GHz Serial transceiver for Wi-Fi-compatible Debugging Firmware Programming for ESP8266
Description

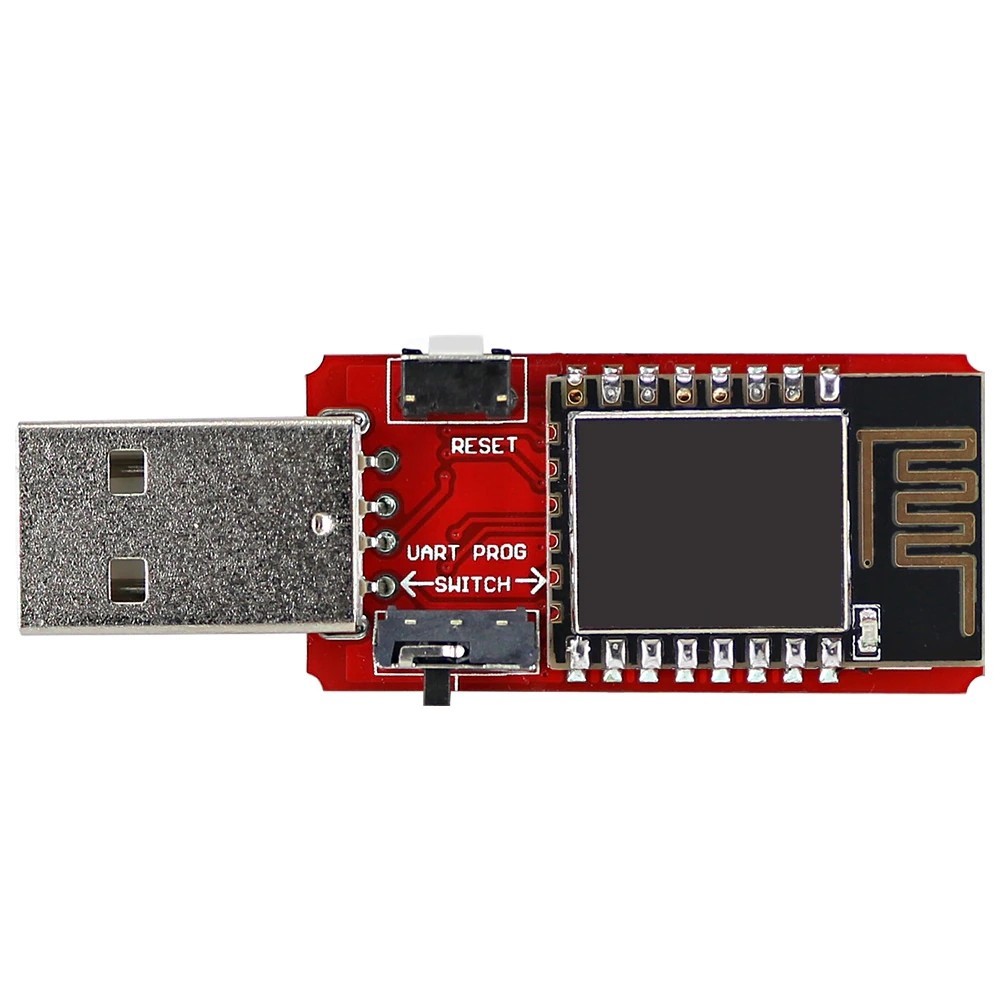

USB to ESP-12E module has CH340G USB to TTL driver IC onboard, so you can easily use your computer to do ESP-12E functional debugging.
ESP-12E is Wi-Fi-compatible serial transceiver module, based on ESP8266 SoC.The SOC has Integrated TCP/IP protocol stack.It is TTL serial communication interface and its parameters can be set by AT command.
It is widely used in networking, smart home project when it is connected to the router. It can be used for remote monitoring of home appliances, bedroom temperature and humidity, controlling home appliances and smart car by the mobile phone.
Features:
- Working voltage: 4.5V - 5.5V (On-board 3.3v LDO Regulator)
- Working current: 300mA(LDO regulator can supply)
- Selectable working mode: On-board toggle switch. UART side for serial TTL debugging by AT commands, PROG for firmware programming
- USB to serial TTL chip: CH340G
- Logic level: 3.3V
- Serial port baud rate: 115200 (default), can be modified to other values by AT command
- Serial communication format: 8N1
- On-board reset button
- On-board switch to select UART mode or firmware update mode
- Antenna Type: Built-in ceramic antenna is available, and you can also use an external antenna.
- Wireless Network Mode: station / softAP / SoftAP station
- Wireless criteria: 802.11 b / g / n
- WIFI @ 2.4 GHz, support for WPA / WPA2 security mode
- It is very easy to design projects by AT command
Photos
Part List (Schematics and program can be sent, Please contact us)
1 x Module

Please Note That (Note: After you buy the product, the documents can be send, Please contact us)
