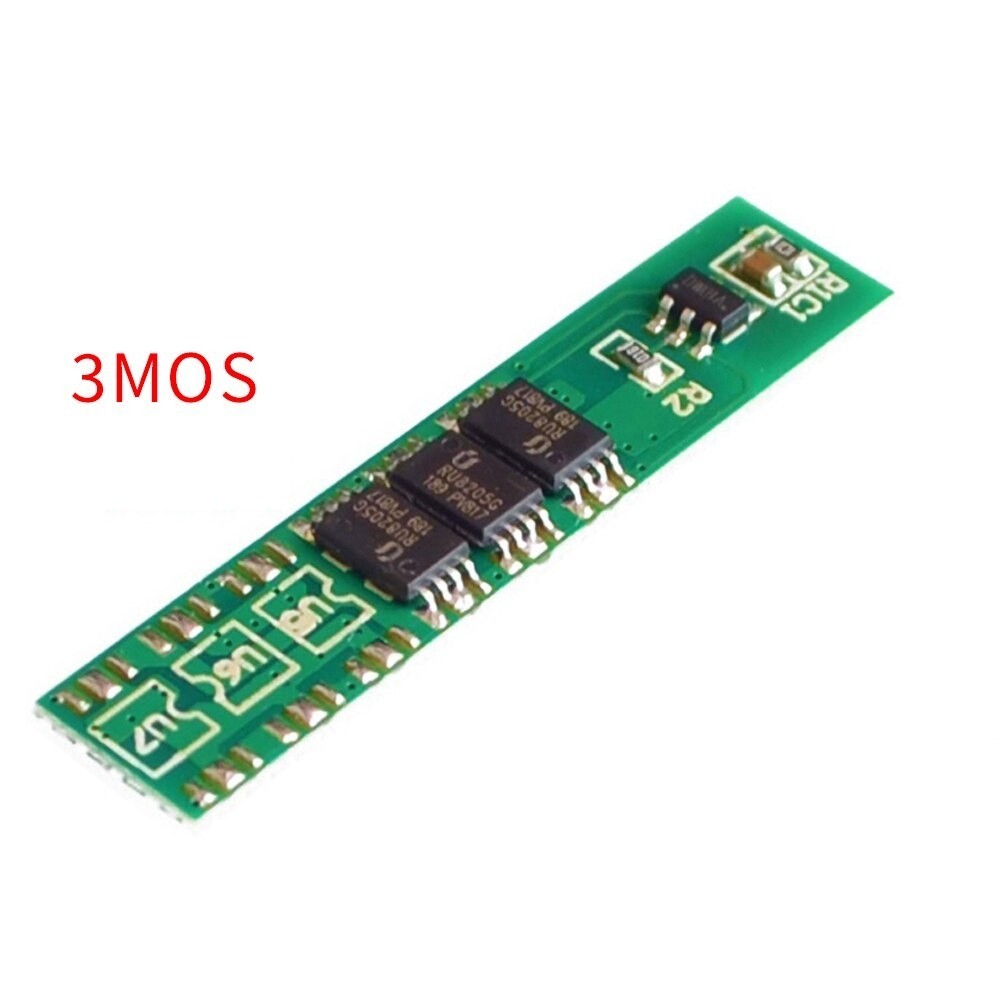

Egyetlen 3,7 V-os lítium akkumulátor védőkártya 3/4/6 MOS 18650 polimer védőkártya 7,5 A munkaáram
Single 3.7V lithium battery protection board 3/4/6 MOS 18650 polymer protection board 7.5A working current
3/4MOS technical parameters:
Overcharge detection voltage: 4.25±0.05V
Overcharge release voltage: 4.23±0.05V
Overdischarge detection voltage: 2.45±0.1V
Upper limit continuous current: 7.5A
Overcurrent detection current: 10A
Charging voltage: 4.2V
Product size: 35*7.6*2MM
IC components: DW01 8205A*3/DW01 8205A*4
6MOS technical parameters:
Overcharge detection voltage: 4.25±0.05V
Overcharge release voltage: 4.23V±0.05V
Overdischarge detection voltage: 2.45±0.1V
Upper limit continuous current: 12A
Overcurrent detection current: 15A
Charging voltage: 4.2V
Product size: 35*7.4*2.2MM
IC components: DW01 8205A
The main function:
Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection
Wiring instructions:
B is connected to the positive electrode of the battery.
B- Connect the negative electrode of the battery.
P is the positive pole of the battery pack output and input
P- is the output and input negative pole of the battery pack
