SCT013-020 bemenet 0-20A kimenet 0-1V felfüggesztés típusa osztott magos áramérzékelő AC áram transzformátor tesztáram
SCT013-020 bemenet 0-20A kimenet 0-1V felfüggesztés típusa osztott magos áramérzékelő AC áram transzformátor tesztáram
557 Ft
58% megtakarítás
1 325 Ft
Nincs adó
SCT013 20A/1V AC sensor split core current transformer
Model : SCT013
Brand : YHDC
Input Current: 0-20A AC
Output Current: 0-1V AC
Accuracy: ±1 %
Linearity: ≤0.2 %
Opening size 13mmx13mm.
Flame resistance: UL94-V0
Standard: GB1208-2006
Work voltage:720V
Work temperature: -25 ℃ ~ 70 ℃
Storage temperature: -30℃～ 90℃
Frequency range: 50Hz-1KHz
Dielectric strength: AC 3500V/1min
Max sampling resistance: 10Ω
Length : 1 m shielded cable with 3.5mm audio plug
Mounting type: suspension

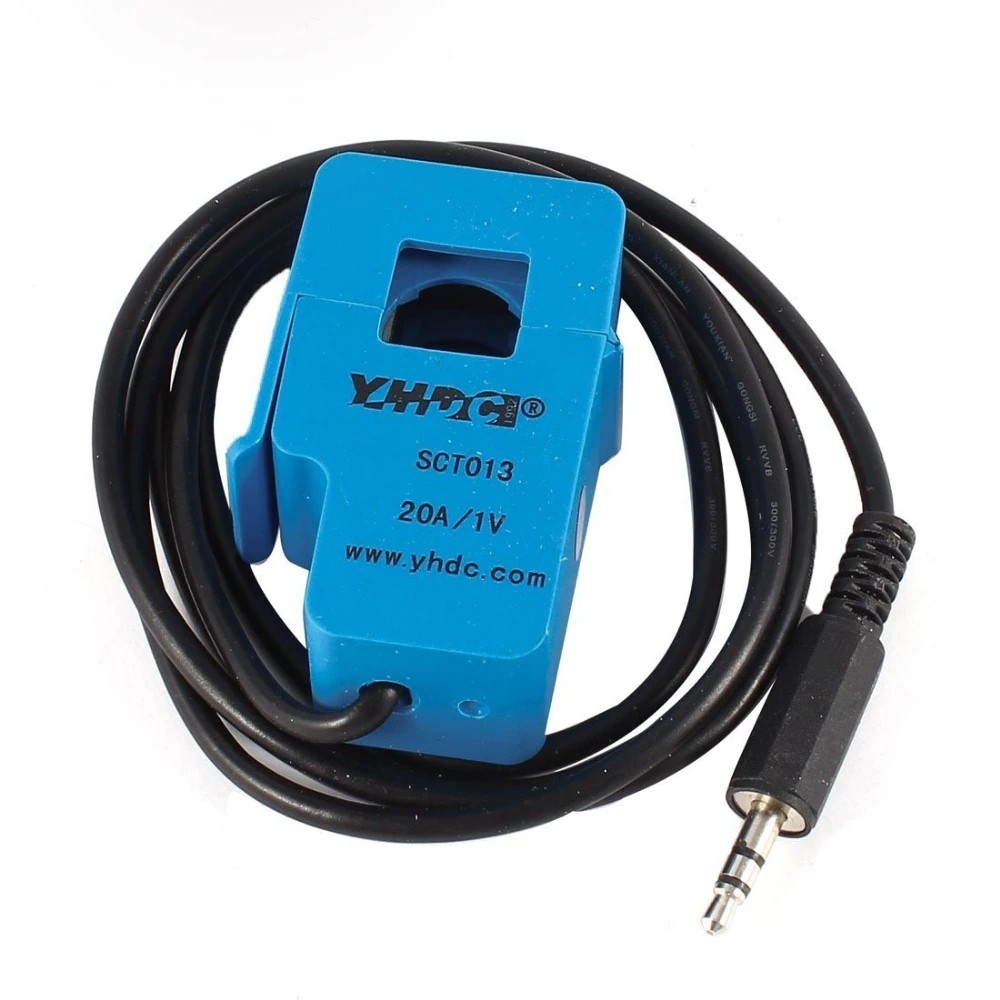

Image of SCT013 20A/1V AC sensor split core current transformer
Data sheet of SCT013 20A/1V AC sensor split core current transformer
Welcome to order my SCT013 20A/1V AC sensor split core current transformer, we are the factory, we can keep you low price, good quality and regular supply.
Model : SCT013
Brand : YHDC
Input Current: 0-20A AC
Output Current: 0-1V AC
Accuracy: ±1 %
Linearity: ≤0.2 %
Opening size 13mmx13mm.
Flame resistance: UL94-V0
Standard: GB1208-2006
Work voltage:720V
Work temperature: -25 ℃ ~ 70 ℃
Storage temperature: -30℃～ 90℃
Frequency range: 50Hz-1KHz
Dielectric strength: AC 3500V/1min
Max sampling resistance: 10Ω
Length : 1 m shielded cable with 3.5mm audio plug
Mounting type: suspension
Image of SCT013 20A/1V AC sensor split core current transformer
Data sheet of SCT013 20A/1V AC sensor split core current transformer
Welcome to order my SCT013 20A/1V AC sensor split core current transformer, we are the factory, we can keep you low price, good quality and regular supply.
