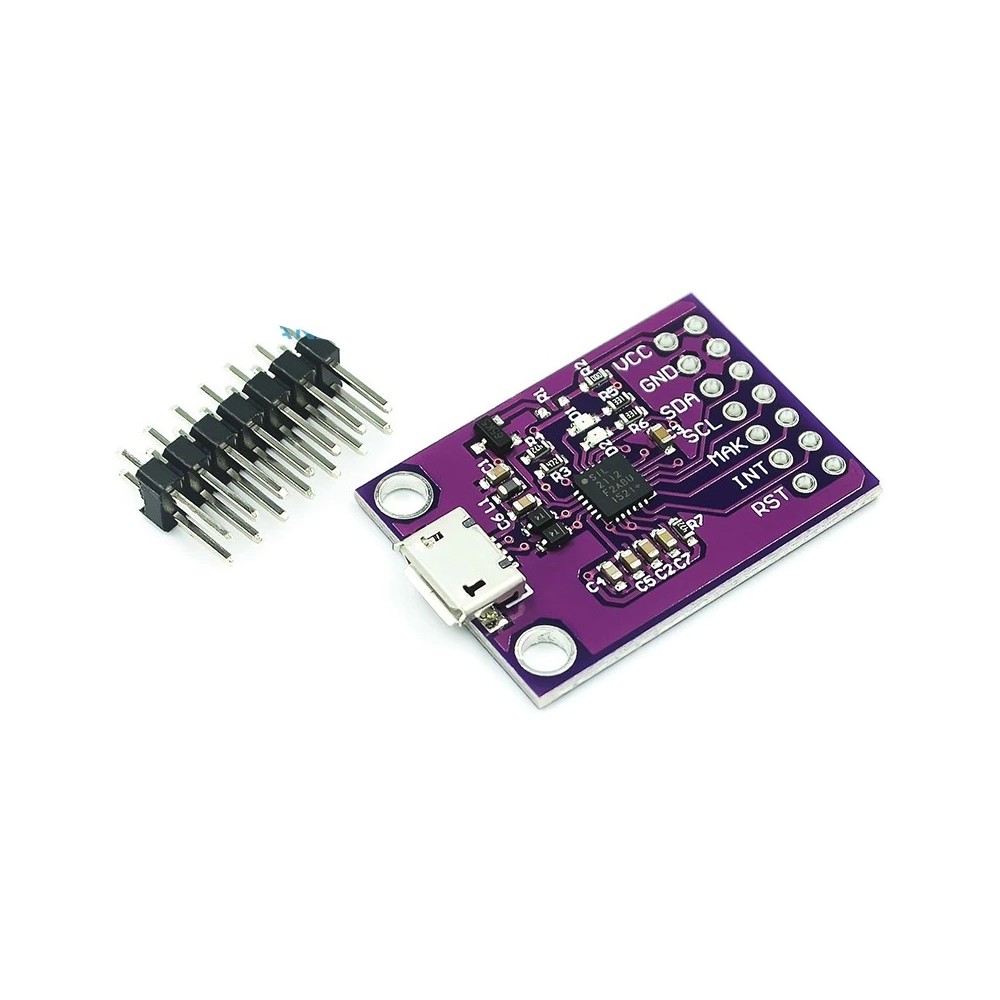

10 db CP2112 hibakereső kártya USB - SMBus I2C kommunikációs modul 2.0 MicroUSB 2112 kiértékelő készlet CCS811
1 800 Ft41% megtakarítás
3 051 Ft
Nincs adó
The CP2112's highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator and eight GPIO pins. All customization and configuration options can be selected through a simple GUI-based configurator. Standard HID class devices do not require the development of complex firmware and drivers. The CP2112 device enables fast USB connectivity with minimal development effort. Parameters: USB bus power supply: 4.0 to 5.25V Self-powered: 3.0 to 3.6V I/O voltage: 1.8V to VDD Working environment temperature: -40 ° C ~ 85 ° C On-chip power-on reset circuit, on-chip voltage regulator: 3.45 V output Compliant with USB specification 2.0 standard; full speed (12Mbps) USB suspend status via SUSPEND and /SUSPEND pins Integrated 194-byte one-time programmable ROM for storing customizable product information 512-byte SMBus data buffer, configurable clock speed device address 7-bit value is the slave address of CP2112 Windows, Mac, and Linux HID to SMBuslibraries API for rapid application development, open access interface specifications. 8 GPIOs can be configured as input/output and open drain/push-pull, configurable clock output for external devices 48MHz to 94kHz, switching LEDs during read/write SMBus Module size: 29.5mm*21.3mm, with two M3 mounting holes, one MicroUSB female port Application areas: portable controllers, USB dongle, data logging
10 db CP2112 hibakereső kártya USB - SMBus I2C kommunikációs modul 2.0 MicroUSB 2112 kiértékelő készlet CCS811 érzékelő modulhoz 10PCS CP2112 Debug Board USB to SMBus I2C Communication Module 2.0 MicroUSB 2112 Evaluation Kit for CCS811 Sensor Module The CP2112's highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator and eight GPIO pins. All customization and configuration options can be selected through a simple GUI-based configurator. Standard HID class devices do not require the development of complex firmware and drivers. The CP2112 device enables fast USB connectivity with minimal development effort. Parameters: USB bus power supply: 4.0 to 5.25V Self-powered: 3.0 to 3.6V I/O voltage: 1.8V to VDD Working environment temperature: -40 ° C ~ 85 ° C On-chip power-on reset circuit, on-chip voltage regulator: 3.45 V output Compliant with USB specification 2.0 standard; full speed (12Mbps) USB suspend status via SUSPEND and /SUSPEND pins Integrated 194-byte one-time programmable ROM for storing customizable product information 512-byte SMBus data buffer, configurable clock speed device address 7-bit value is the slave address of CP2112 Windows, Mac, and Linux HID to SMBuslibraries API for rapid application development, open access interface specifications. 8 GPIOs can be configured as input/output and open drain/push-pull, configurable clock output for external devices 48MHz to 94kHz, switching LEDs during read/write SMBus Module size: 29.5mm*21.3mm, with two M3 mounting holes, one MicroUSB female port Application areas: portable controllers, USB dongle, data logging 1005002312207801 - dingheke
The CP2112's highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator and eight GPIO pins. All customization and configuration options can be selected through a simple GUI-based configurator. Standard HID class devices do not require the development of complex firmware and drivers. The CP2112 device enables fast USB connectivity with minimal development effort. Parameters: USB bus power supply: 4.0 to 5.25V Self-powered: 3.0 to 3.6V I/O voltage: 1.8V to VDD Working environment temperature: -40 ° C ~ 85 ° C On-chip power-on reset circuit, on-chip voltage regulator: 3.45 V output Compliant with USB specification 2.0 standard; full speed (12Mbps) USB suspend status via SUSPEND and /SUSPEND pins Integrated 194-byte one-time programmable ROM for storing customizable product information 512-byte SMBus data buffer, configurable clock speed device address 7-bit value is the slave address of CP2112 Windows, Mac, and Linux HID to SMBuslibraries API for rapid application development, open access interface specifications. 8 GPIOs can be configured as input/output and open drain/push-pull, configurable clock output for external devices 48MHz to 94kHz, switching LEDs during read/write SMBus Module size: 29.5mm*21.3mm, with two M3 mounting holes, one MicroUSB female port Application areas: portable controllers, USB dongle, data logging
