PIC mikrokontroller minimális rendszerkártya fejlesztő kártya Univerzális programozóülés ICD2 KIT2 KIT3 KIT3 PICKIT 2 PICKIT3 MT-hez
PIC Microcontroller Minimum System Board Development Board Universal Programmer Seat ICD2 KIT2 KIT3 FOR PICKIT 2 PICKIT3 MT






PIC Microcontroller Minimum System Board Development Board Universal Programmer Seat ICD2 KIT2 KIT3 FOR PICKIT 2 PICKIT3

Description:

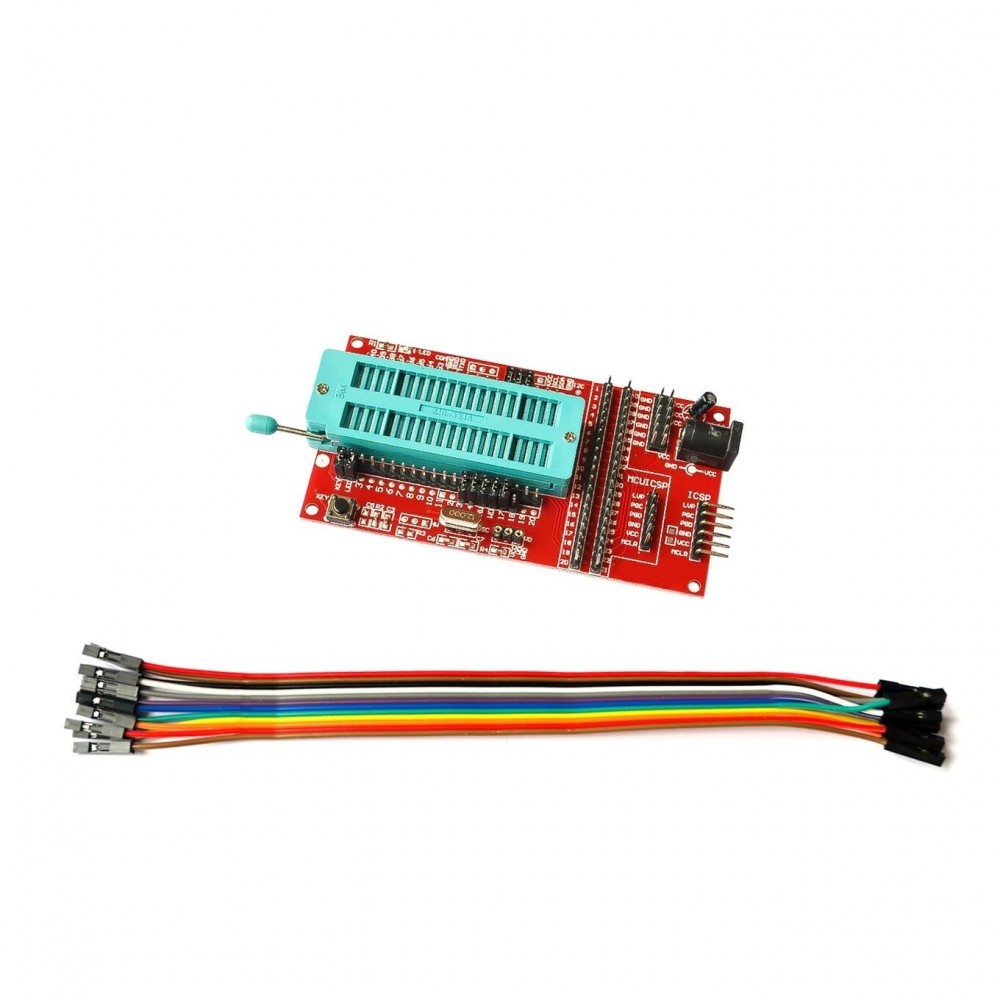

PIC microcontroller minimum system board / universal programmer seat, dual-function board, user-friendly development, support all PIC microcontroller line package.
Board size: 106 * 52mm double-panel

Board resources:
LED can be connected to any I / O;
Crystal conversion interface, can be connected to any pin to meet all IC.
A button (do reset key).
All I / O external expansion;
Auxiliary power expansion port;
The line of SIP6 download / debug interface;
DC power connector.
Single-line 18B20 temperature detection interface;
Infrared receiver interface;
COM port lead (PIC16F877A)-based;
I2C interface based PIC16F877A.

Package Included:
1 x Programmer seat dual-function board
1 x 12m crystal
1 x 6 PIN-1PIN Dupond line
5 x 1 PIN-1PIN DuPont line
