1Hz ~ 10kHz 0,1% lépésfrekvencia Folyamatosan állítható hullámjelgenerátor csere NE555 LM358 CD4017 DDS PWM AD9850
1Hz ~ 10kHz 0,1% lépésfrekvencia Folyamatosan állítható hullámjelgenerátor csere NE555 LM358 CD4017 DDS PWM AD9850
272 Ft
58,75% megtakarítás
659 Ft
Nincs adó
Product Name: 1Hz~10kHz 0.1% Stepping Frequency Continuously Adjustable wave Signal Generator replace NE555 LM358 CD4017 DDS PWM AD9850 AD9851
We have 0.02Hz~10MHz Frequency continuously adjustable Version
Package inlcuded:
1 x 1Hz~10Khz Adjustable signal generator
Description:

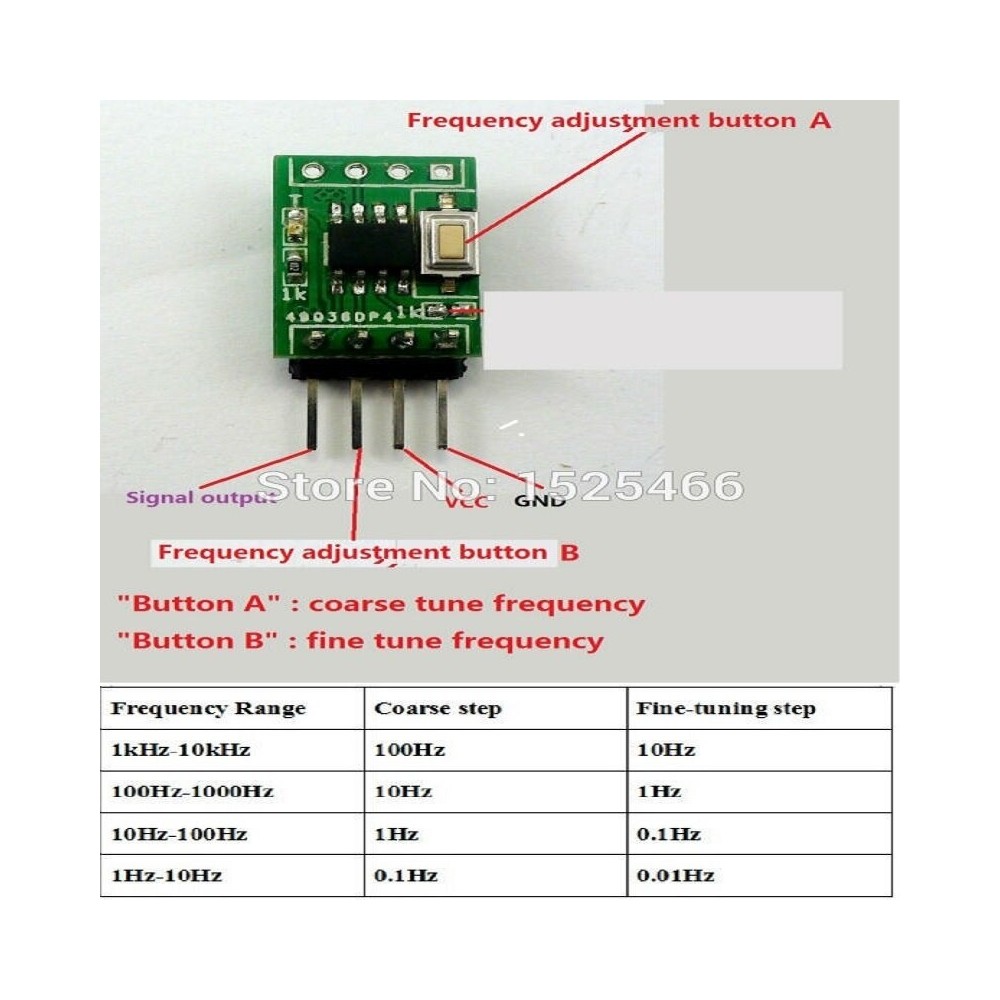

VCC : DC 5V(3.8~5.V) Positive power supply
GND : Negative power
Button A : Coarse tune frequency,Stepping 1%
Button B : Fine tune frequency,Stepping 0.1% .
Signal output : 1Hz-10kHz(Accuracy:0.6% ) Square wave output(5V TTL Level,maximum output current 20MA).
PCB size : 17*12mm
Frequency continuously adjustable, Stepping: See above figure
USE:
Short press (less than 2S) be slow to adjust,Short press once, Frequency slow adjustment(Frequency decreases).
Long press (more than 2S) for fast adjustment,When the frequency is adjusted to a minimum(1Hz).
Short press once again, become the highest frequency(10kHz)
Back Pin Diagram:
Wiring Diagram:
10Mhz Waveform:
1Mhz Waveform:
100Khz Waveform:
1Khz Waveform:
0.9hz Waveform:
